Bitumen Sprayer- Bitumen Pressure Distributor

Send Inquiry

Request To Call Back

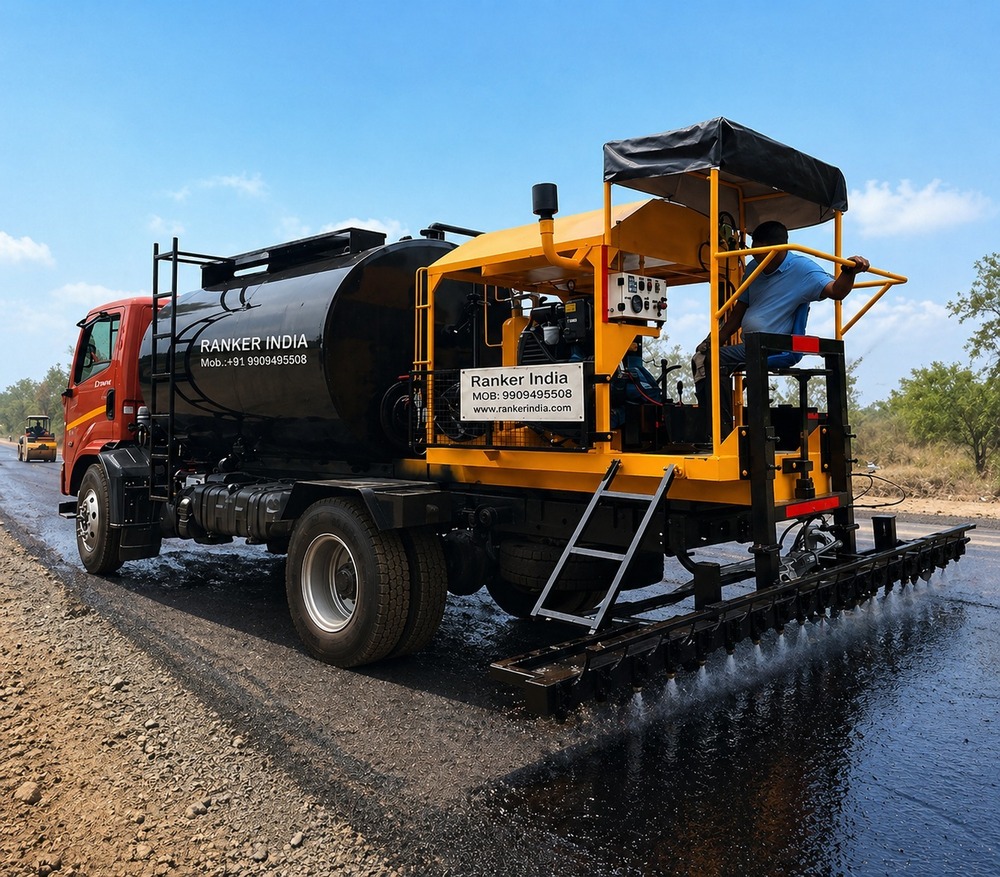

Bitumen Sprayer- Bitumen Pressure Distributor

Name: Bitumen Sprayer- Bitumen Pressure Distributor
Brand: RANKER INDIA SPARES & SERVICES
Price: 675000 INR
Availability: InStock

Price 675000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Bitumen Sprayer- Bitumen Pressure Distributor Specification

Compressor Type
Trolley Mounted Double Cylinder Compressor

Noise Level
Below 85 dB

Driven Type
Truck Mounted / Tractor Mounted

Air Pressure
6-7 Bar

Hole Size
Standard Nozzle 0.8-2.0 mm Dia.

Mount Type
Truck Mounted

Tank Dimensions (Mm X Mm X Mm)
Approx. 4000 x 1700 x 1850 mm (Varies with Model)

Coverage Area
Varies, Up to 4.5 m Spray Width

Fuel Type
Diesel

Temperature
Up to 200C (Bitumen Heating Temperature)

Working Width
Up to 4.5 m

Tank Material
Mild Steel, IS Grade

Type
Bitumen Sprayer - Bitumen Pressure Distributor

Material
Mild Steel, Stainless Steel (Tank and Structural Parts)

Capacity
4000 Ltrs to 10,000 Ltrs

Computerized
No

Automatic Grade
Semi-Automatic

Cooling System
Water Cooled / Air Cooled (Engine)

Power
Diesel Engine Driven, 25-50 HP (Depending on Model)

Size
Truck Mounted

Color
Black & Yellow

Weight
Approx. 3,200 kg (Varies with Model/Capacity)

Dimension (L*W*H)
Approx. 6500 x 2200 x 2700 mm (May Vary)

Manhole Size
450 mm Dia. with Inner Strainer

Insulation
75-100 mm Glass Wool Insulated Tank

Spray Nozzle Type
Brass, Coin Type, Easily Changeable

Asphalt Spray Control
Electronic Speed Sensing with Variable Spray Control

Spray Bar Length
Up to 4.5 Meters (Manual or Hydraulic Extension)

Cleaning System
Air & Diesel Flushing for Nozzle and Spray Bar Cleaning

Bitumen Spray Rate
0.25 to 2.5 Kg/m2

Burner Type
Automatic Pressure Oil Burner

Hydraulic System
Provided for Spray Bar Lifting (Optional)

Level Indicator
Tank Level Indicator with Sight Glass

Chassis
Heavy Duty Steel Frame for Robust Support

Material Transfer Pump
Provided for Loading/Unloading Bitumen

Pump Type
Positive Displacement Rotary Gear Pump

Accessory Kit
Hand Spray Lance for Spot Spraying

Temperature Gauge
Provided, Analog/Digital (Optional)

Safety Features
Fire Extinguisher, Emergency Cutoff, Overheat Protection

Heating System
Diesel Fired Burner with Automatic Temperature Control

About Bitumen Sprayer- Bitumen Pressure Distributor

Introducing our rare Bitumen Sprayer- Bitumen Pressure Distributor, the highlighted solution for premium road construction. Engineered with a matchless spray bar length of up to 4.5 meters, and equipped with an automatic pressure oil burner, its performance is truly incomparable. The impeccable electronic speed-sensing spray control ensures a uniform bitumen layer every time. Constructed from robust mild steel and stainless steel, with insulation up to 100 mm, it guarantees operational safety and longevity. Purchase confidence is secured with essential safety features, user-friendly cleaning systems, and a versatile capacity ranging from 4000 to 10,000 liters.

Competitive Edge and Application Versatility

The Bitumen Sprayer- Bitumen Pressure Distributor stands out for its impeccable competitive advantages, including robust tank insulation, advanced temperature control, and matchless ease of operation. Suitable for both general and specific roadwork requirements, its exceptional spray width of up to 4.5 meters ensures even coverage on highways, airport runways, and other surfaces. Whether for municipal, industrial, or infrastructure applications, it is designed to deliver high performance and reliability, making it the preferred choice for discerning professionals.

Efficient Delivery Time and Market Coverage

Once your purchase is confirmed, your Bitumen Sprayer- Bitumen Pressure Distributor is carefully dispatched within the promised schedule. Each product is securely shipped and handed over to clients across India, with a focus on major domestic markets. We maintain an efficient sample policy, supplying samples upon request for evaluation. This streamlined process ensures you receive the product promptly, ready to support your operational needs with minimal downtime.

FAQ's of Bitumen Sprayer- Bitumen Pressure Distributor:

Q: How does the Bitumen Pressure Distributor ensure accurate bitumen spray rates?

A: The unit features electronic speed-sensing with variable spray control, allowing operators to adjust the bitumen spray rate between 0.25 to 2.5 Kg/m2 for exceptional precision and consistency.

Q: What surfaces are best suited for the Bitumen Sprayer's application?

A: This sprayer is ideal for highways, roads, airport runways, and large paved areas, ensuring even application of bitumen across diverse surfaces.

Q: When can I expect my Bitumen Sprayer order to be shipped?

A: Orders are typically dispatched within the committed delivery timeline, and you will be notified as soon as your unit is shipped and handed over for delivery.

Q: Where is the Bitumen Sprayer- Bitumen Pressure Distributor primarily supplied?

A: We export, manufacture, and supply primarily across India, catering to road construction and maintenance requirements nationwide.

Q: What maintenance features are included for cleaning the spray bar and nozzles?

A: The machine is equipped with an air and diesel flushing system, enabling quick and efficient cleaning of both the nozzle and spray bar after use to prevent blockages and maintain performance.

Q: How does the safety system of the Bitumen Sprayer protect the operator?

A: It incorporates vital safety features such as fire extinguishers, emergency cutoff switches, and overheat protection to ensure operator and equipment safety during operation.
